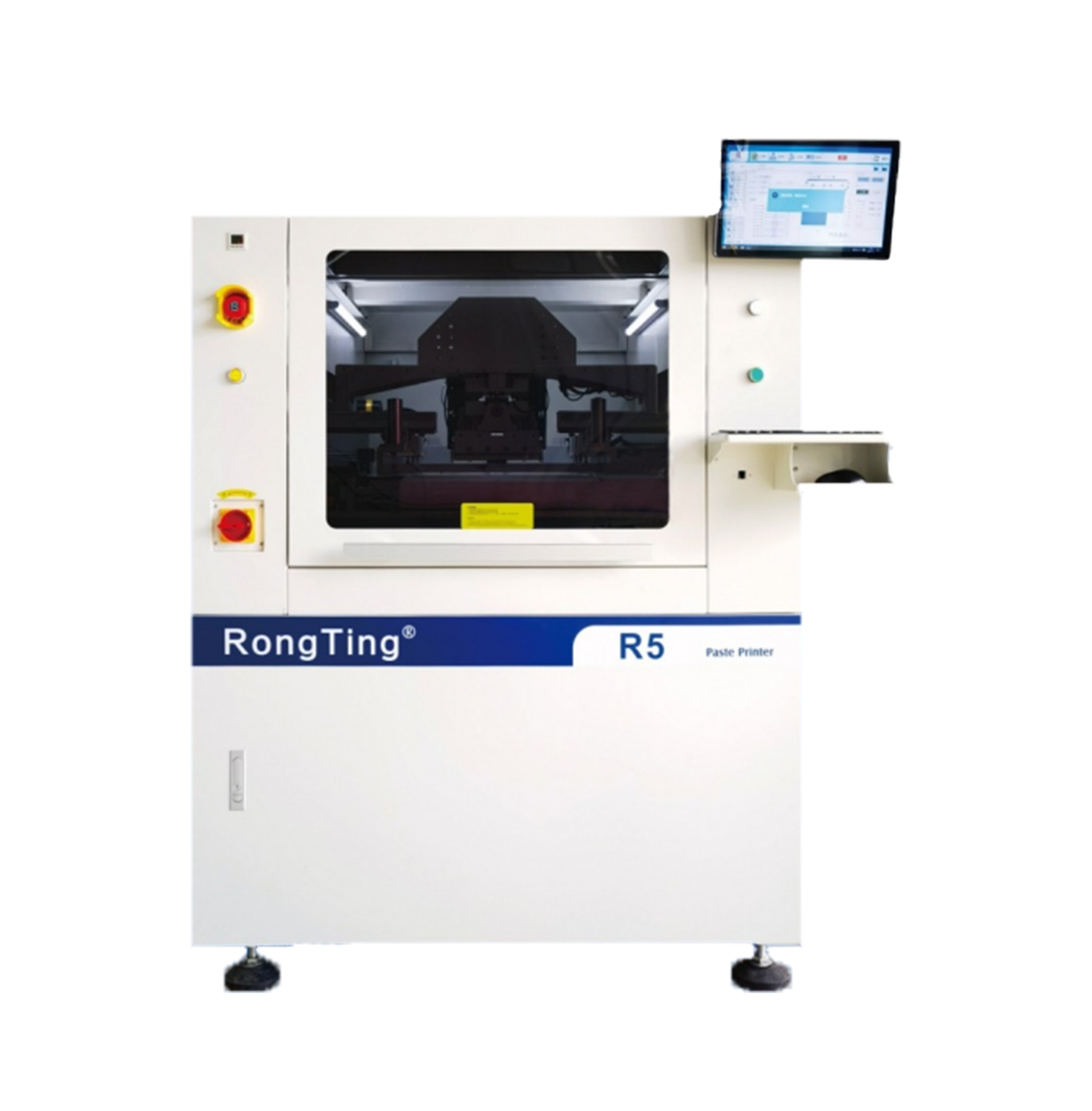

SMT全自动锡膏印刷机 R5
- 产品介绍
- 型号参数
- SMT解决方案
钢网定位系统
Stencil Positioning System
人性化设计的钢网定位系统，大小钢网通用,具有良好而广泛的实用性。
自动钢网定位系统，节省换线时间，提升整体效率。
Humanized steel mesh positioning system,it is applicable for stencils of various size.Automatic stencil positioning system saves the line changeover time and enhances the overall efficiency.
清洗系统
Cleaning System
前置的钢网清洁系统具备干洗，湿洗，真空洗三种方式可自由组合，也可以人工清洗钢网。CCD部分和清洗部分分离设计，当CCD工作时，CCD独立移动，降低同服马达的负载和运动冲量，提高精度及速度和使用寿命。软件功能可以控制酒精与钢网纸的用量，有效节省更多耗材;真空清洗匹配专用风机，强力有效。
The Installed on the front stencil cleaning system have 3 options: Dry cleaning, Wet cleaning and Vacuum cleaning can be selected to use,both individually and multiply.And you can also choose to clean manually. The unit to clean is separated from CCD camera,which can minimize the load of motor and impulse,improve the positioning precision and speed and extend the service life.The software function can control the dosage of alcohol and stencil cleaning paper,Effectively save more consumables.Vacuum cleaning is supported with a dedicated fan,powerful and effective.
精确的光学定位系统
Accurate optical positioning System
采取均匀的环形和高亮度的同轴光，先进的上下视觉匹配系统。可调节亮度功能，可识别各类型的Mark点，焊点，镀锡，镀铜，镀金，喷锡，FPC等各种颜色不同的PCB.
Uniform ring light,high brightness coaxial light and advanced upper/lower vision system Full range of light compensation,Automatic and accurate recognized of all type MARK points.Applicable for tin plating ,copper plating,gold plating,tin spraying,FPC and other types PCB.
专用平台校正系统
Special Platform Calibration System
U，V，W三轴联动具有超高的动态特性，结构经典可靠，可快速实现PCB板的偏移调节，
U，V，W three axes linkage is designed with super-high dynamic characteristics and with classic and reliable structure，it can quickly adjust the offset of pcb。
操作系统
Operation software
采用Windows win7简单易学易用的操作界面。具有良好的人机对话功能，做程序文件具有教学及导航功能，每步都有提示方便所有操作人员快速熟悉，菜单中英文一键切换。具有操作日志，故障记录分析诊断等功能。
Using Windows win7 operation interface,and easy to leran for user,with good man-machine interactive function.Programing is designed with teaching and navigation function,guidance is available on every step.Chinese/English selectable Operating Joumal/Breakdown Record/Breakdown Diagnosis.
PCB运输及定位系统
PCB Transport & Clamping System
采取独特的皮带传动系统,有效防止卡板掉板。可编程马达控制运输速度,停板位置精准。左右进出板方向可自由选择。
采取柔性侧夹及真空吸腔,有效夹紧PCB保证PCB各钢网之间完全平整接触。
Unique belt transmission system avoids being stuck or fall-off of PCB.Programmable motor controls transport speed and puts PCB in the precise position.Free to choose left of right as the PCB input/output direction.Flexible side clamp and PCB support vacuum block hold PCB tightly and ensure the full even contact between PCB and stencil.
- 产品介绍
钢网定位系统
Stencil Positioning System
人性化设计的钢网定位系统，大小钢网通用,具有良好而广泛的实用性。
自动钢网定位系统，节省换线时间，提升整体效率。
Humanized steel mesh positioning system,it is applicable for stencils of various size.Automatic stencil positioning system saves the line changeover time and enhances the overall efficiency.
清洗系统
Cleaning System
前置的钢网清洁系统具备干洗，湿洗，真空洗三种方式可自由组合，也可以人工清洗钢网。CCD部分和清洗部分分离设计，当CCD工作时，CCD独立移动，降低同服马达的负载和运动冲量，提高精度及速度和使用寿命。软件功能可以控制酒精与钢网纸的用量，有效节省更多耗材;真空清洗匹配专用风机，强力有效。
The Installed on the front stencil cleaning system have 3 options: Dry cleaning, Wet cleaning and Vacuum cleaning can be selected to use,both individually and multiply.And you can also choose to clean manually. The unit to clean is separated from CCD camera,which can minimize the load of motor and impulse,improve the positioning precision and speed and extend the service life.The software function can control the dosage of alcohol and stencil cleaning paper,Effectively save more consumables.Vacuum cleaning is supported with a dedicated fan,powerful and effective.
精确的光学定位系统
Accurate optical positioning System
采取均匀的环形和高亮度的同轴光，先进的上下视觉匹配系统。可调节亮度功能，可识别各类型的Mark点，焊点，镀锡，镀铜，镀金，喷锡，FPC等各种颜色不同的PCB.
Uniform ring light,high brightness coaxial light and advanced upper/lower vision system Full range of light compensation,Automatic and accurate recognized of all type MARK points.Applicable for tin plating ,copper plating,gold plating,tin spraying,FPC and other types PCB.
专用平台校正系统
Special Platform Calibration System
U，V，W三轴联动具有超高的动态特性，结构经典可靠，可快速实现PCB板的偏移调节，
U，V，W three axes linkage is designed with super-high dynamic characteristics and with classic and reliable structure，it can quickly adjust the offset of pcb。
操作系统
Operation software
采用Windows win7简单易学易用的操作界面。具有良好的人机对话功能，做程序文件具有教学及导航功能，每步都有提示方便所有操作人员快速熟悉，菜单中英文一键切换。具有操作日志，故障记录分析诊断等功能。
Using Windows win7 operation interface,and easy to leran for user,with good man-machine interactive function.Programing is designed with teaching and navigation function,guidance is available on every step.Chinese/English selectable Operating Joumal/Breakdown Record/Breakdown Diagnosis.
PCB运输及定位系统
PCB Transport & Clamping System
采取独特的皮带传动系统,有效防止卡板掉板。可编程马达控制运输速度,停板位置精准。左右进出板方向可自由选择。
采取柔性侧夹及真空吸腔,有效夹紧PCB保证PCB各钢网之间完全平整接触。
Unique belt transmission system avoids being stuck or fall-off of PCB.Programmable motor controls transport speed and puts PCB in the precise position.Free to choose left of right as the PCB input/output direction.Flexible side clamp and PCB support vacuum block hold PCB tightly and ensure the full even contact between PCB and stencil.
- 型号参数
型号 Model
R5
网框尺寸Frame size
MIN SIZE
370*370mm
MAX SIZE
737*737mm
THICKNESS
15-35mm
最小PCB板尺寸Min PCB size
50*50mm
最大PCB板尺寸Max PCB size
400*350mm
PCB板厚度尺寸PCB Board thickness
0.4-9mm
翘曲量PCB Warpage
<1%
传送高度Transport Height
900 ± 40mm
传输方向Transmission direction
左-右,右-左,左-左,右-右Left-Right,Right-Left,Left-Left,Right-Right
运输速度Transport speed
Max 1500mm's Prammable
PCB定位PCB locations
支撑方法Support System
磁性顶针/可调节顶升平台/等高块Magnetic Pin/Up-down table adjusted/Support block by hand
夹紧方式Clamping System
边夹Side clamping
印刷头Print Head
两个独立的直联式马达驱动印刷头Two independent motorised printheads
刮刀速度Squeegee Speed
6-200mm/sec
刮刀压力Squeegee Pressure
0~15Kg马达控制
刮刀角度Squeegee Angle
60° /55° /45°
刮刀类型Squeegee Type
钢刮刀标准，胶刮刀Stair less steel(Standard),plastic
钢网分离速度Stenail Separation Speed
0.1-20mm/sec 可调 Programmable
清洗方式Clean System
干/湿/抽真空Dry,wet Vacuum(Programmable)
视野区域CCD FOV
7 x 7mm
锡膏检测Solder Paste inspection
2D检测 2D Inspection（选配）
机器平台调整范围 Adjustment
X=±3mm，Y=±7mm，θ=±2°
整机参数 Machine
重复定位精度Repeat Position Accuracy
±10um
印刷精度Printing Accuracy
±25um
印刷周期Cycle Time
<7s(Exclude Printing & Cleaning)
换线时间Product Changeover
<5Min
使用空气Air Required
4.5-6Kg/cm2
电源Power input
AC:220+10%,50/60HZ 1Ф 2.5KW
控制方法Control Method
PC Control
机器外形尺寸Machine Dimensions
1190(L)*1370(W)*1500(H)mm
机器重量Machine Weight
Approx:约820Kg
